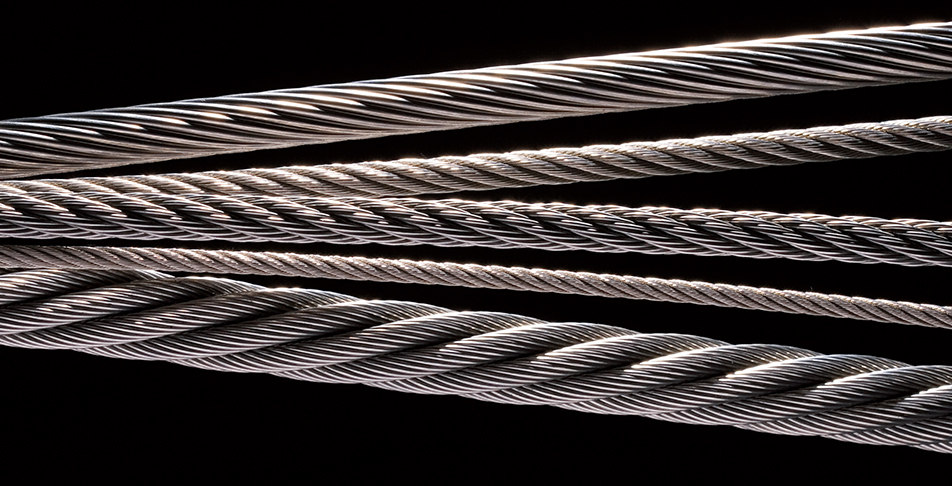

STAINLESS ROPE

CHARACTERISTICS

KOS provides world best shiny surface quality.

Exceptional durability through special processes and strict diameter management.

KOS secures expertise for developing new projects.

It is suitable for a wide range of applications such as automobiles, yachts, electronics, construction, and operation.

SPEC

ASTM, JIS, EN and other international standards and customized specifications to meet customer requirements

GRADE : 304, 316, 2205 etc.

Construction and production range

Construction of Stainless Steel Wire Rope

1x7	1x19	7x19	18x7+FC
Dia. 0.24~12.7 mm	Dia. 0.25~22.0 mm	Dia. 0.60~32.0 mm	Dia. 3.0~24.0 mm

1x12	7x7	7x7x7	19x7
Dia. 0.55~14.0 mm	Dia. 0.36~32.0 mm	Dia. 1.50~24.0 mm	Dia. 3.0~19.0 mm

High-Flexible Wire Rope

Symbol
Constr.	6×7+FC	6×12+7FC	6×19+FC
Rope Dia. (mm)	2.00mm up to 28.00mm	3.00mm up to 28.00mm	3.00mm up to 32.00mm
Recommen- dation	Flexible ropes for anti-corrosive application in general	For slings light in weight and flexible	General
Symbol
Constr.	6×19(S)+IWRC	6×24+7FC	6×25(Fi)+IWRC
Rope Dia. (mm)	4.00mm up to 28.00mm	4.00mm up to 28.00mm	4.00mm up to 28.00mm
Recommen- dation	For fishing ropes with high resistance to seawater	For slings light in weight and flexible	For anti-corrosive hoisting ropes and drag line
Symbol
Constr.	6×36(WS)+IWRC	6×37+FC	7×37
Rope Dia. (mm)	4.00mm up to 28.00mm	4.00mm up to 28.00mm	4.00mm up to 28.00mm
Recommen- dation	For slings in high breaking load and flexible anti-corrosive hoisting ropes	For flexible slings in anti-corrosive working field	For slings with high breaking load in anti-corrosive working field

Packing : Provide various packing type to meet required reel lengths. (Spool, D/M)
