고려특수선재

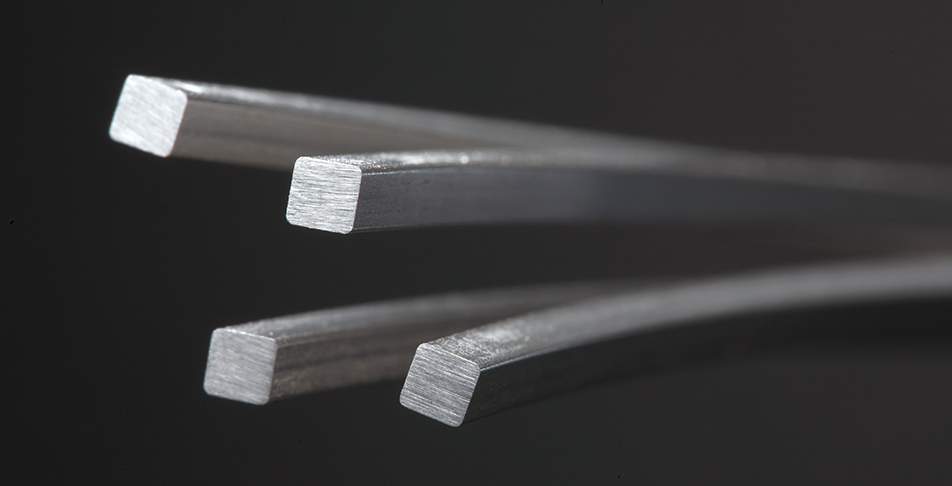

STAINLESS FLAT WIRE

CHARACTERISTICS

KOS provides improved fatigue strength through Round Edges.

KOS provides uniform tensile strength over the entire length.

KOS provides various product shapes, strength, and dimension control according to customer's application (square, triangle, rectangle, semicircle etc.)

Excellent straightness and machinability.

SPEC

ASTM, JIS, EN and other international standards and customized specifications to meet customer requirements

Grade : 201, 204CU, 302, 304, 631J1, 420J2, KOS92 Etc.

General size range & tolerance

General size range & tolerance

Cross section	Size Range	Tolerance	Corner R	Application
	t : 0.2 ~ 1.5 mm w : 1.0 ~ 6.0 mm	± 0.015 ± 0.050	natural edge	Wiper blade, Oil gage, Kenlock clamp, Wavy spring, Retaining ring, Cable armouring, Textile machine part
	t : 0.7 ~ 3.5 mm w : 0.7 ~ 3.5 mm	± 0.015	Thickness (t) R ~ 1.00 0.20 ± 0.10 1.01 ~ 1.50 0.30 ± 0.15 1.51 ~ 2.00 0.40 ± 0.15 2.01 ~ 3.00 0.45 ± 0.20 3.01 ~ 0.50 ± 0.20	Spring
	t : 0.5 ~ 2.0 mm w : 1.5 ~ 6.0 mm	± 0.015 ± 0.025		Piston ring, Spring

Packing : Provide various packing type to meet required unit weight
